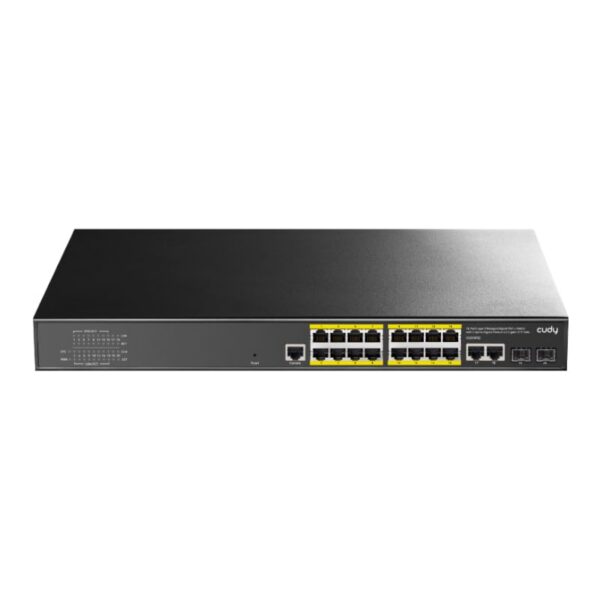

Cudy 16 Port Layer 2 Managed Gigabit PoE Switch - Unboxed

No deposit, no hidden costs

Free no-hassle returns

Damage covered by Epic Support

Flexible rental period

What's in the Box?

Good Condition Promise:

We promise that every item you rent will be good working condition, as described in the product description.

Product Specs

The Cudy 16-Port Layer 2 Managed Gigabit PoE+ Switch with 2 x Uplink and 2 x FSP slots allows you to manage your home or office network with ease. It features 16 Ethernet PoE ports with 2 x uplink ports and 2 x SFP slots. Its PoE RJ-45 connectors support any 10/100/1000Mbps Ethernet devices, while the 2 non-PoE uplink ports support 10/100/1000Mbps Ethernet devices and it’s compliant with IEEE 802.3af/802.3at network standards.

Used for many applications the Cudy 16 Port PoE+ Switch works with IP Cameras for home, office or small businesses. It also works well with PCs, printers and access points in your home or office, making it ideal for small businesses. It even features a VLAN mode for additional security, this allows the ports to be isolated from one another.

Its simple plug-and-play interface makes it incredibly easy to use. Its sturdy design is made from high-quality metal. This gives you a longer service life and provides better heat dissipation, making it suitable for most environments. It also features a fanless design with venting holes to help dissipate heat with silent operation.

Watchdog guarantees the uninterrupted operation of your PoE devices. The PoE watchdog continuously monitors the connection status of remote hosts. If an error is detected on the remote PoE device, the PoE switch immediately restarts the device to bring it back to normal operation.

FEATURES:

16 Gigabit POE Ports, 2 Uplink Gigabit Ports and 2 Gigabit SFP Slots 1 Console Port
Compatible with IEEE802.3at and IEEE802.3af
Ethernet port supports 10/100/1000M adaptive
Fanless design, natural cooling, compatible with 1U Rack Mount
Support PoE Power Management, PoE watchdog
Lightning Protection Surge: General Mode 6KV, Differential Mode 4KV, ESD 15KV

SPECIFICATIONS:

AC Input: AC100-240V, 50/60Hz
Ethernet Port: 16 x 10/100/1000Mbps PoE Port, 2 x 1000Mbps SFP Port, 2 x 1000Mbps Uplink Port, 1 x RJ45 Console Port
Bandwidth: 40Gbps
Packet Forwarding rate: 19.76Mpps
DDR SDRAM: 128MB
Flash Memory: 16MB
Packet Neck Scarfer Memory: 4M
MAC Address: 8K
Jumbo frame: 9.6Kbytes
VLANs: 4096
Network Protocols:
IEEE 802.3: Ethernet MAC Protocol
IEEE 802.3i: 10BASE-T Ethernet
IEEE 802.3u: 100BASE-TX Fast Ethernet
IEEE 802.3ab: 1000BASE-T Gigabit Ethernet
IEEE 802.3z: 1000BASE-X Gigabit Ethernet (optical ﬁber)
IEEE 802.3ad: Standard method for performing link aggregation
IEEE 802.3x: Flow control
IEEE 802.1ab: LLDP/LLDP-MED (Link Layer Discovery Protocol)
IEEE 802.1p: LAN Layer QoS/CoS Protocol Trafﬁc Prioritization (Multicast ﬁltering function)
IEEE 802.1q: VLAN Bridge Operation
IEEE 802.1x: Client/Server Access Control and Authentication Protocol
IEEE 802.1d: STP
IEEE 802.1s: MSTP
IEEE 802.1w: RSTP
PoE protocol: IEEE802.3af (15.4 W), IEEE802.3at (30 W)
Network Media: 10BASE-T: Cat3, 4, 5 or above UTP(≤100 M), 100BASE-TX: Cat5 or above UTP(≤100 M), 1000BASE-TX: Cat5 or above UTP(≤100 M)
Fiber Medium: Multi-mode Fiber: 50/125, 62.5/125, 100/140um, Single-mode Fiber: 8/125, 8.7/125, 9/125, 10/125um
Working Environment: Operating temperature: -20~50°C, Storage temperature: -40~85°C, Operating Humidity: 10%~90%, No condensation, Storage Humidity: 5%~90%, No condensation, Working height: Up to 10,000 feet, Storage height: Up to 10,000 feet
Indicator: PWR, SYS, PoE, Link/ACT
PWR (Power Indicator): Lighting: Powered, Un-Light: No Power
SYS (System Indicator): Flashing: System Start-up, Lighting: System Running
PoE: Lighting: PoE on, Un-Light: PoE off
Link/ACT: Lighting: Link connection, Flashing: Data transmission, Un-Light: Link disconnect
VLAN: 1-16 ports are isolated from each other, and the PoE Watchdog function is open (hardware takes precedence over software)
Default: All ports can communicate with each other, PoE Watchdog is closed
Extend: 13-16 Port: Supports 250m link extension at a rate of 10M, other ports normal, PoE Watchdog open (hardware takes precedence over software)
Reset: Short press restart, long press 5 seconds to restore factory Settings

WHAT’S IN THE BOX:

Cudy 16-Port Layer 2 Managed Gigabit PoE+ Switch with 2 Uplink+2 FSP slots x1
