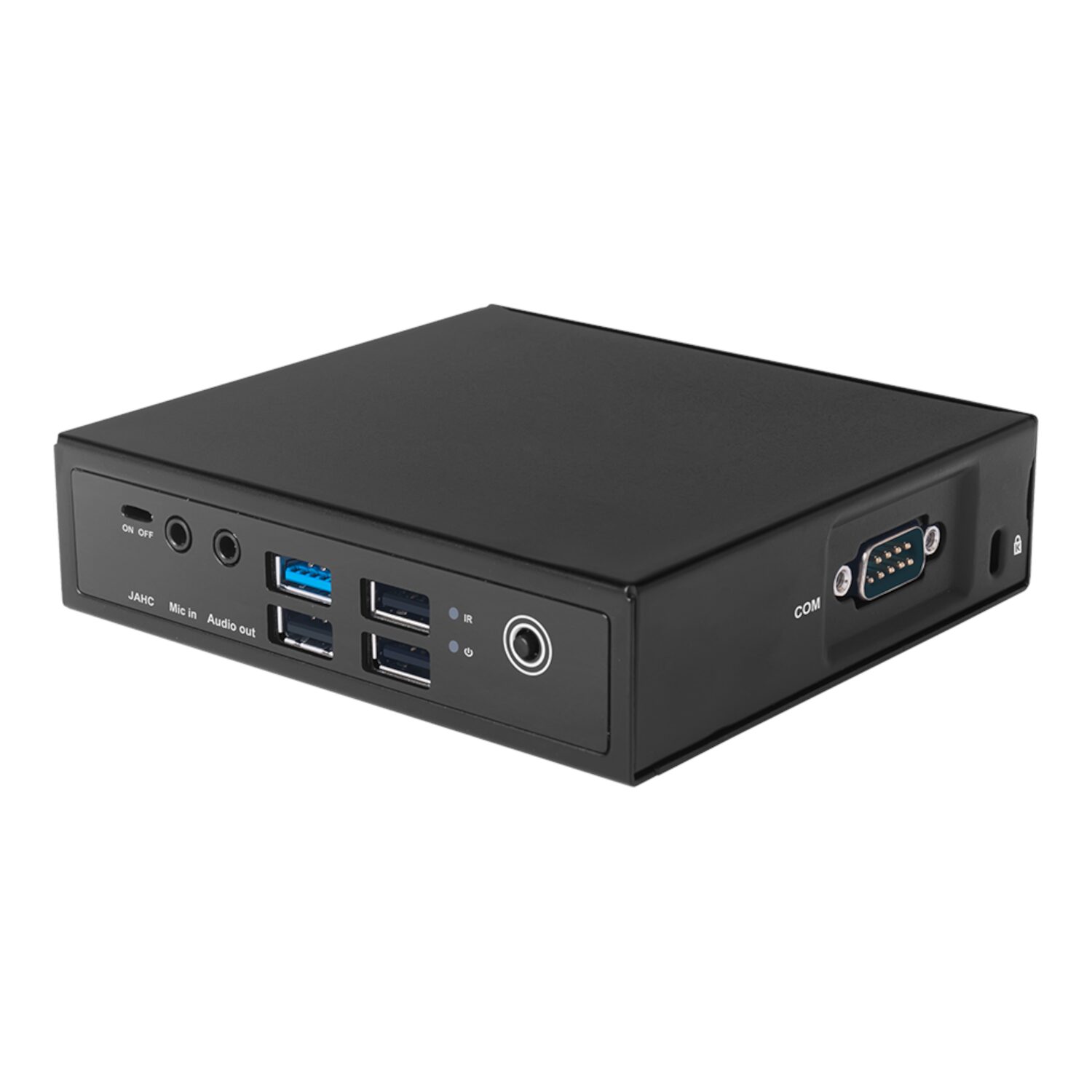

The Giada F210U is an ultra-compact, fanless digital signage media player engineered for continuous, mission-critical operations. Powered by the Intel® Atom™ x5-Z8350 processor, it delivers reliable performance with minimal power consumption (TDP ≤ 4W). Its passive thermal cooling system ensures silent, dust-resistant operation, enhancing system stability and longevity.

Equipped with Intel® HD Graphics 400, the F210U supports dual 1080p video outputs via HDMI 1.4a and VGA interfaces, facilitating vibrant and seamless multimedia presentations. The device offers versatile connectivity options, including onboard Wi-Fi, Bluetooth 4.1, Gigabit Ethernet, and a full-size Mini-PCIe slot for 3G/4G modules, complemented by a SIM slot for mobile network integration.

The F210U’s compact metal chassis (11.66 x 10.74  x 3 cm) allows for discreet installation in space-constrained environments. It supports multiple operating systems, including Windows 8/10 (64-bit) and Ubuntu 16.04 (64-bit), providing flexibility for various application requirements.

FEATURES:

• Ultra-Compact Design – Space-saving form factor ideal for discreet deployments in digital signage, retail, and industrial environments.
  Fanless Thermal Design – Passive cooling system ensures silent operation, enhanced reliability, and reduced maintenance in dusty or sensitive environments.
  Intel® Atom™ x5-Z8350 Processor – Energy-efficient quad-core processor delivering stable performance with ultra-low power consumption (TDP ≤ 4W).
  Dual Display Support – HDMI 1.4a and VGA outputs support dual 1080p video playback for dynamic multimedia presentations.
  Robust Connectivity – Built-in Wi-Fi, Bluetooth 4.1, Gigabit Ethernet, and Mini-PCIe expansion slot with SIM card support for 3G/4G network integration.
  Multiple OS Compatibility – Supports Windows 8/10 (64-bit) and Ubuntu 16.04 (64-bit) for deployment flexibility.
  Metal Chassis Construction – Durable, industrial-grade casing designed to withstand demanding operational environments.
  Auto Power On – Automatically restarts after power loss, ensuring continuous uptime in unattended installations.

SPECIFICATIONS:

• CPU
• CPU: Intel® Atom® x5-Z8350 processor
• Frequency: 1.92 GHz
• Chipset: SoC
• Processing Units: 4 Cores
• Scenario Design Power: 2 W
• System
• System Memory :2 GB/4 GB, Onboard DDR3L-1333 MHz
  Storage:
  • 32 GB/64 GB, Onboard eMMC
  • 1 x TF Card reader
• Watchdog Timer: Yes
• Auto Power On: Yes
• RTC: Set up independently every day, for a week as a cycle
• Remo on: NA
• Power Requirement: DC-IN, 12 V/2.08 A
• Dimensions: 116.6 mm x 107.4 mm x 30 mm (4.59” x 4.23” x 1.18”)
• Construction: Metal, Black
• Operating System: Windows 8 (64-bit) /Windows 10 (64-bit), Ubuntu 16.04 (64bit)
• Operating Temperature: 0°C ~40°C @0.7m/s Air Flow
• Certifications CE, FCC Class B
• Humidity 95% @ 40°C (non-condensing)
• Network
• Network Controller: 1 x Realtek RTL 8111H Gigabit Ethernet
• Ethernet Interface: 1 x RJ45
• Wi-Fi/BT: Onboard Wi-Fi/BT module
• Mobile Network:
  • 1 x Fulll-size Mini-PCIe for 3G/4G
  • 1 x SIM Slot
• Display
• GPU: Intel® HD Graphics 400
  Graphic Engine: DirectX 11, OpenGL 4.0, OpenCL 1.2
  Display Interface:
  • 1 x VGA (Max. 1920 x 1080 @60 Hz)
  • 1 x HDMI (Max. 1920 x 1080 @24 Hz)
• I/O Interface
• USB: 1 x USB3.2 Gen.1, 3 x USB2.0
• Serial Port: 1 x RS232
• Audio: 1 x MIC-IN, 1 x AUDIO-OUT
• Button: 1 x Power on, 1 x CLR-CMOS
• Antenna
• 1 x Connector for Wi-Fi/BT
• 1 x Connector for 3G/4G (Reserved)

WHAT’S IN THE BOX:

• Giada F210U Cherry Trail Fanless Signage Player x1
